MDF-DU901VHL-PE VIP ECO ULT Freezer

Cost-saving and environmentally friendly sample storage within an optimal footprint

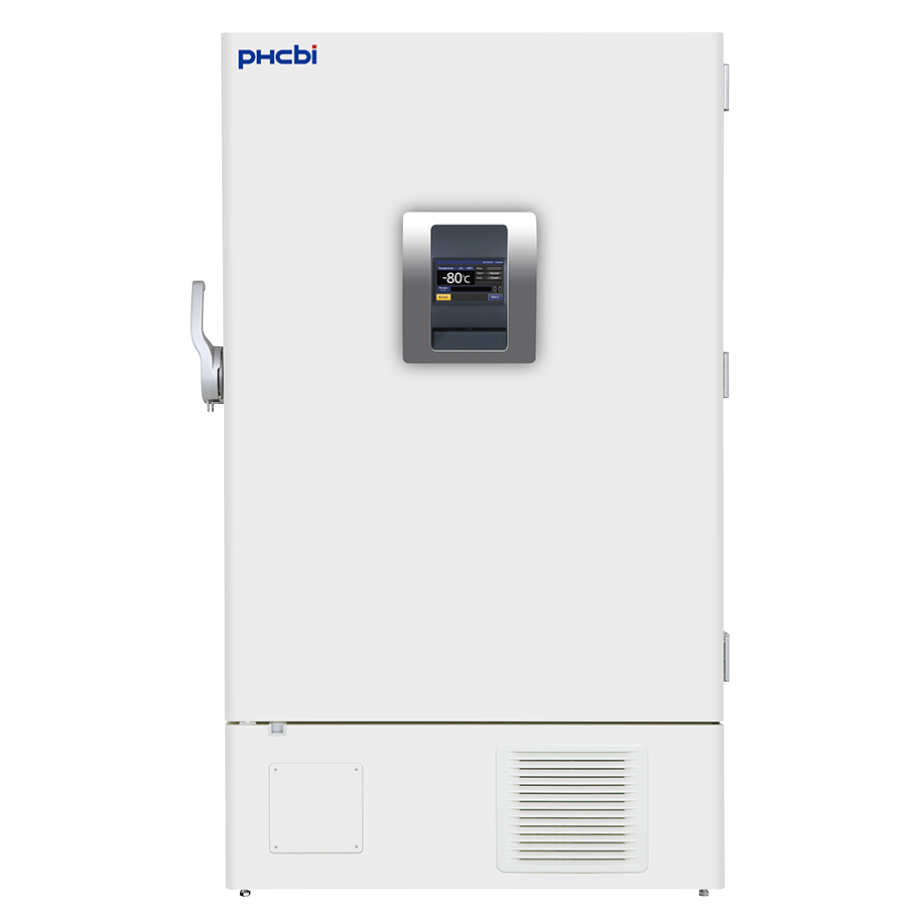

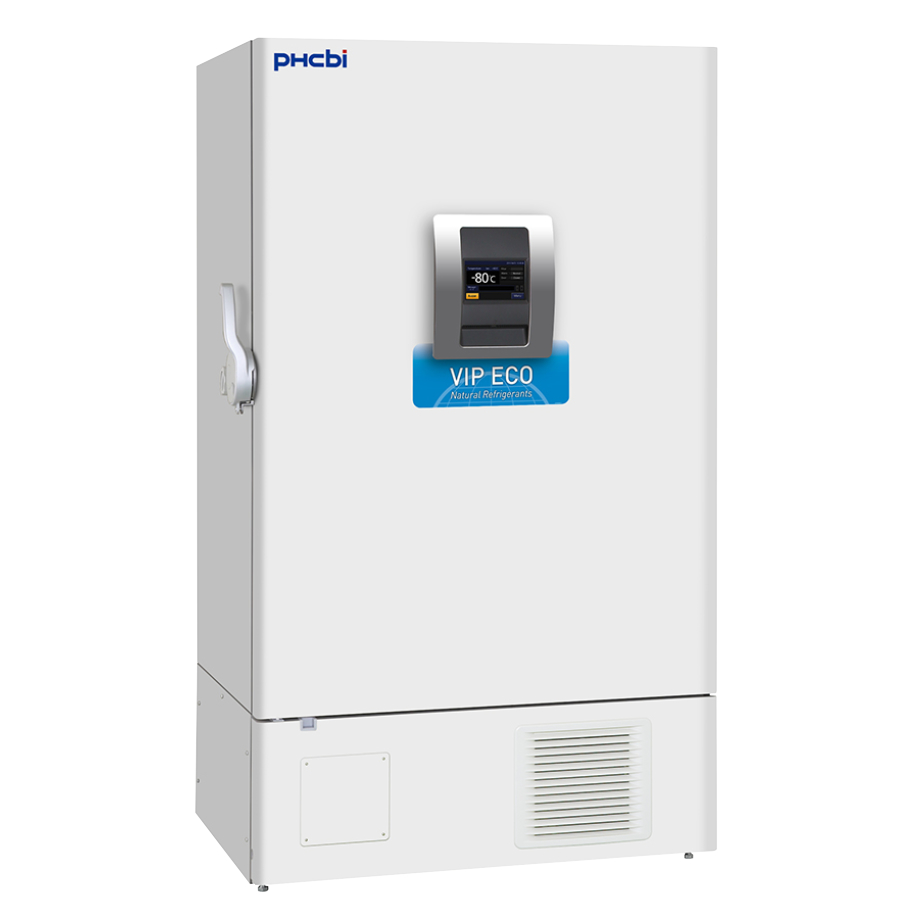

MDF-DU901VHL-PE VIP ECO -86°C Ultra Low Temperature Freezer

The MDF-DU901VHL-PE VIP ECO -86°C ultra low temperature freezer provides maximum sample storage capacity within an optimum footprint combined with natural refrigerants to minimise energy consumption, reduce environmental impact and save money.

Efficient refrigeration

Naturally occurring hydrocarbon (HC) refrigerants provide more efficient cooling due to their high latent heat of evaporation. As well as improved performance this leads to reduced power consumption and energy costs.



› Request a Quote

MDF-DU901VHL-PE VIP ECO

Inverter technology

The MDF-DU901VHL-PE VIP ECO ULT Freezer contains Inverter Compressors that maximise cooling performance under different conditions, and contribute to reducing the energy consumption of the freezer.

Intelligent interface

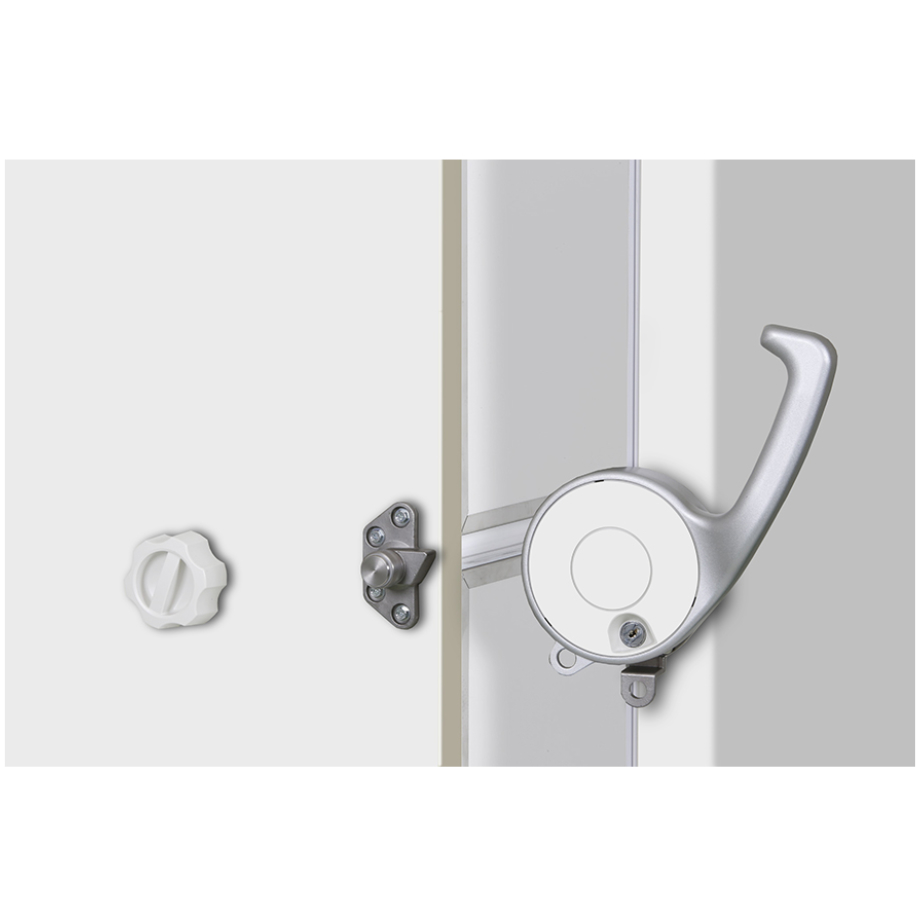

The EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC simple and convenient.

Key benefits

Environmentally friendly

Ideal for laboratories looking to reduce their carbon footprint and environmental impact to comply with sustainability policies.

Uniform sample storage

Inverter compressors provide optimum stability, while quality of design ensures reliability. Ideal for samples that are sensitive to temperature fluctuations.

Easy data monitoring

Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.

Inverter compressors

While conventional freezers use single speed compressors which cycle on and off, the MDF-DU901VHL-PE VIP ECO ULT Freezer contains inverter compressors that can run at different speeds to maximise cooling performance under different conditions. Combined with hydrocarbon refrigerants, these compressors ensure the most efficient energy use and reduced heat output.

Efficient sample storage

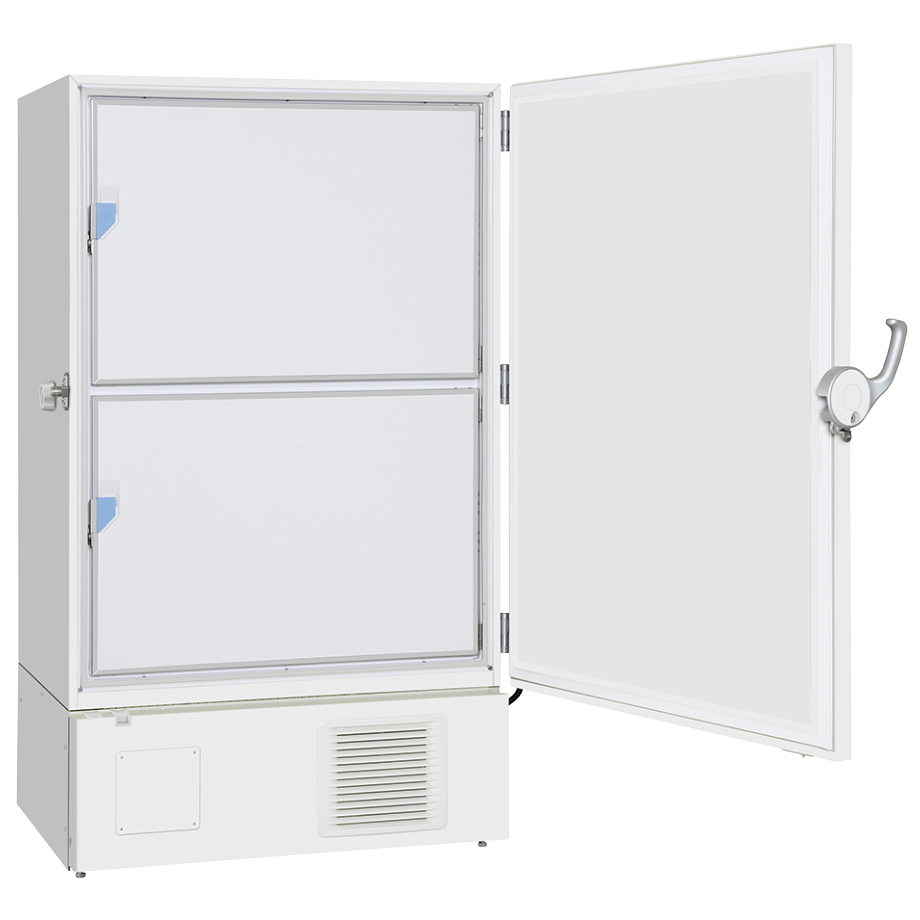

The combination of VIP PLUS vacuum insulation and an enhanced cabinet design with two insulated inner doors, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity.

Product videos

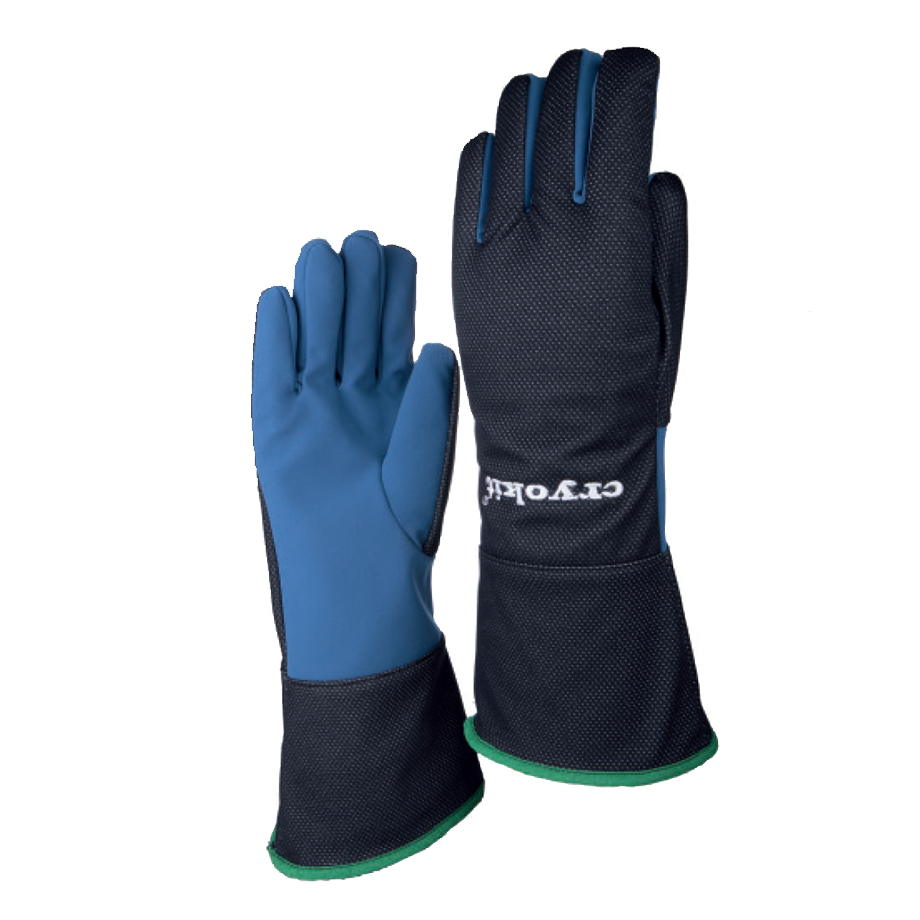

Cryo Glove

Combining the Cryo glove 400 with our ULT freezer is an essential practice that prioritizes safety, sample integrity, precision, and adherence to industry standards. It's a small investment that yields significant benefits for both you and your research or laboratory work.

Cryo glove 400

×

› Request a Quote

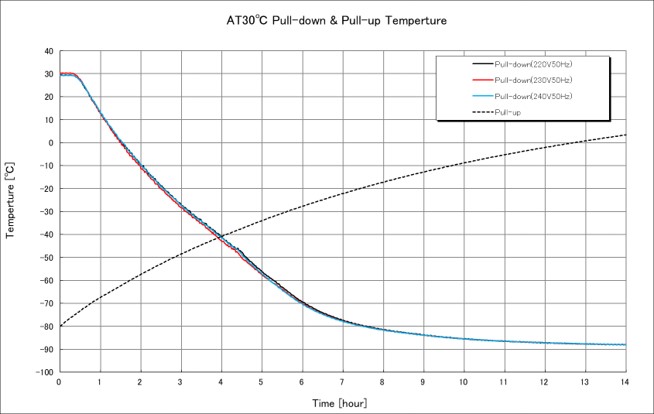

Performance

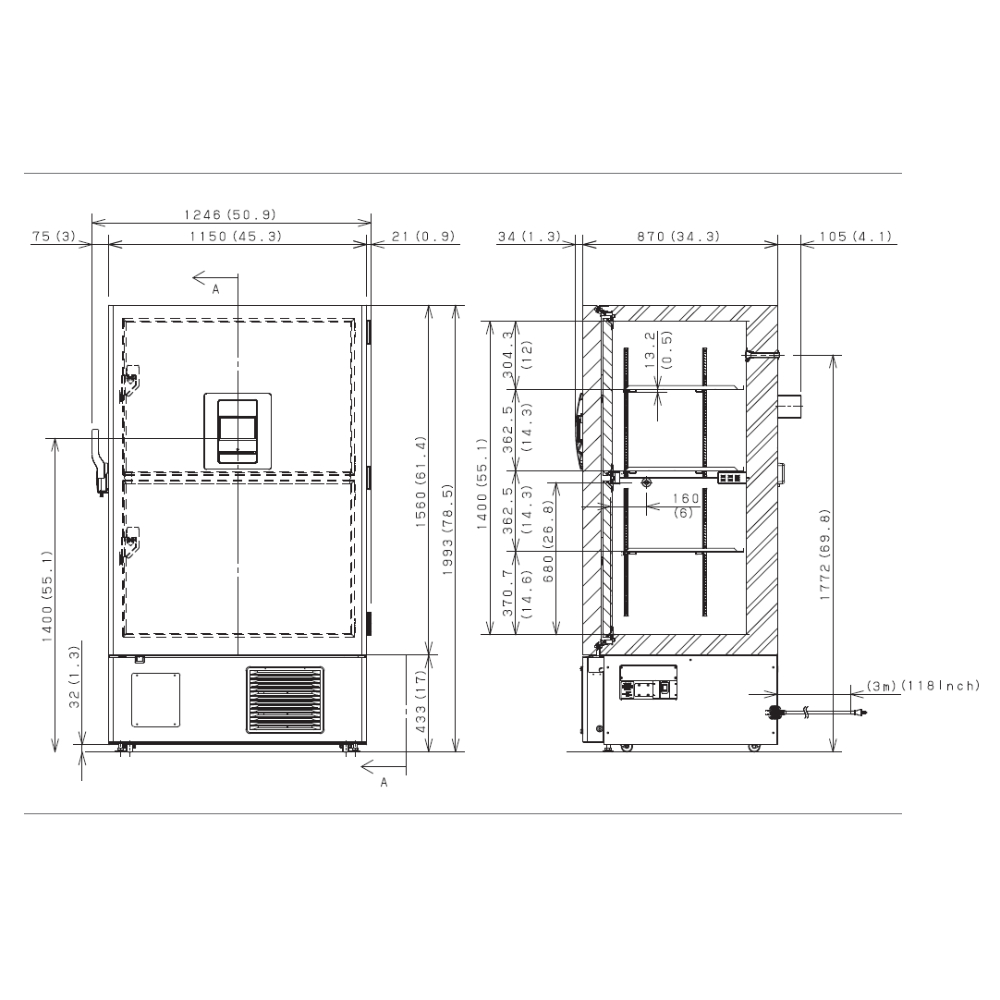

External Dimensions (W x D x H)	1150 x 870 x 1993 mm
Internal Dimensions (W x D x H)	1010 x 600 x 1400 mm
Volume	845 litres
Net Weight	328 kg
Capacity (Aluminium Racks 2” Boxes)	672 (2” boxes)
Capacity (Stainless Steel Racks 2” Boxe)	-
Cooling Performance	-86 °C
Temperature Setting Range	-50 to -90 °C
Temperature Control Range	-50 to -86 °C
Controller	Microprocessor, non-volatile memory
Display	LCD Touch Screen
Temperature Sensor	Pt-1000
Refrigeration System	Cascade
Compressors	2 x 1000 W
Refrigerant	HC
Insulation Material	PUF / VIP Plus
Insulation Thickness	70 mm
Exterior Material	Painted Steel
Interior Material	Painted Steel
Outer Doors/Lid	1
Outer Door Lock	Y
Inner Doors/Lid	2 pieces (insulated)
Shelves	3
Max. Load - Per Shelf	50 kg
Max. Load - Total	150 kg
Vacuum Release Port	Y
Access Port	2
Access Port Position	Back, Bottom
Access Port Diameter	17
Casters	4 (2 leveling feet)
Power Failure	V-B-R
High Temperature	V-B-R
Low Temperature	V-B-R
Filter	V
Door Open	V-B
Power Supply	230 V
Frequency	50 Hz
Noise Level	52 dB [A]

Accessories

Options

Small Inner Door Kit	MDF-9ID-PW (max 2) set of 2

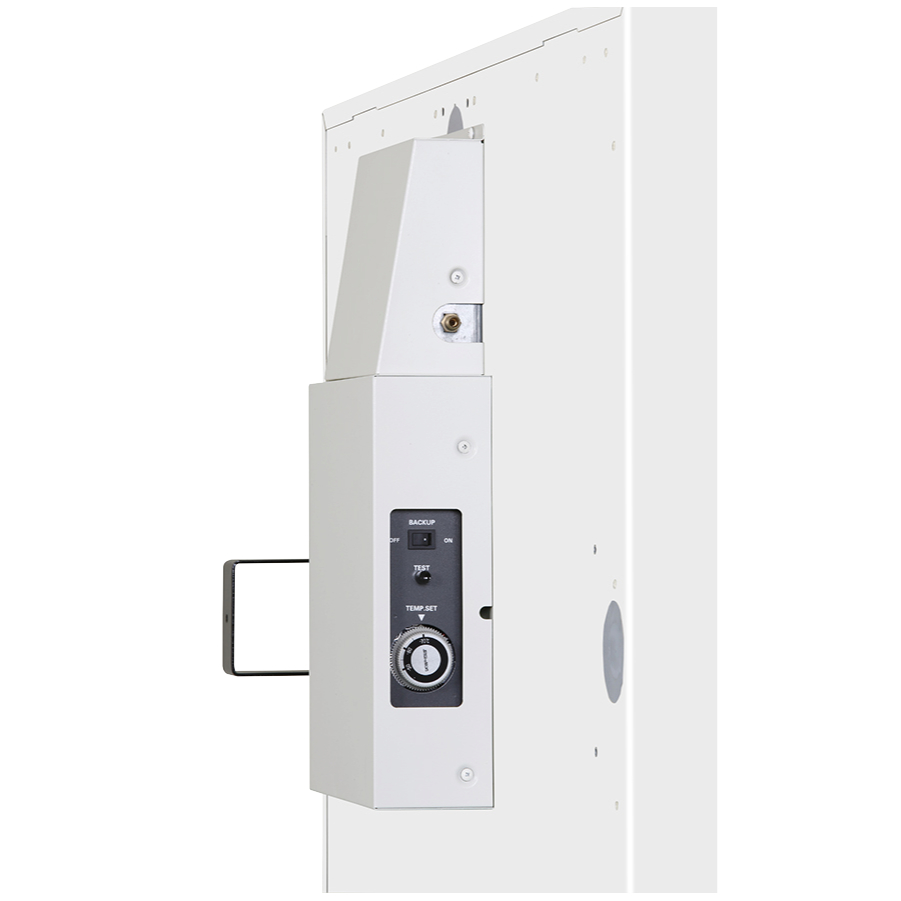

Liquid CO2 back-up	MDF-UB7-PW

Temperature recorders

- Circular type	MTR-G85C-PE
- Chart paper	RP-G85-PW
- Ink pen	PG-R-PW
- Continuous strip type	MTR-85H-PW
- Chart paper	RP-85-PW
- Ink pen	DF-38FP-PW
- Recorder housing	MDF-S3085-PE

Communication Interface

Modbus	MTR-MODB1-PW
Analog	MTR-420MA-PW
