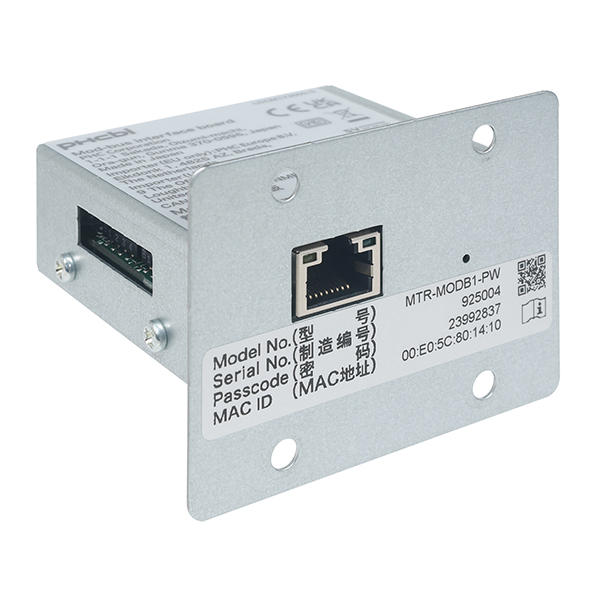

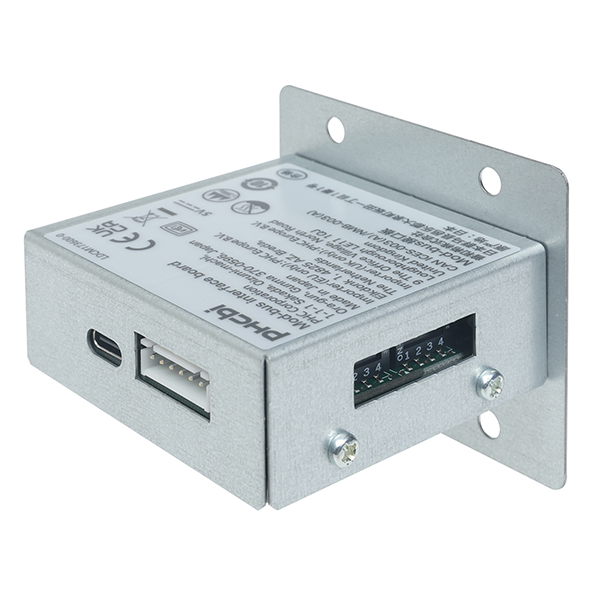

| Product name |
interface board |
| Model number |
MTR-MODB1-PW |

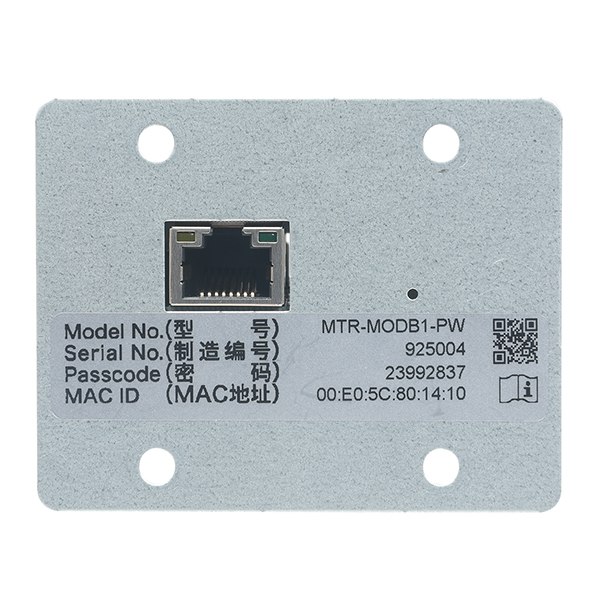

| Ethernet port |
RJ45x1 |
| Standard |
10Base-T/100Base-TX |
| Protocol |
Modbus*2/TCP |
| Port number |
502(Fixed Modbus) |
| Outer dimension |
W74mm x D62.2mm x H58mm |
| Weight |
0.14 kg |
| Power source |
DC 5 V (supplied from the connected device) |
| Display |
Green LEDx1 (Lit: Normal Operation) |
| Yellow LEDx1 (Blinking: Ethernet Communication) |
| Operation button |
Reset buttonx1 |
Operation Switch
(for service use only) |

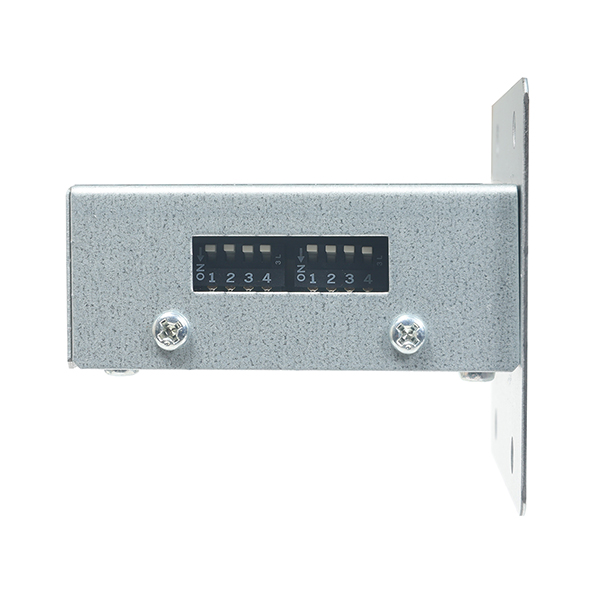

DIP Switch (4-pole)x2 |
| Communication items |
Refer to the register address map document. |

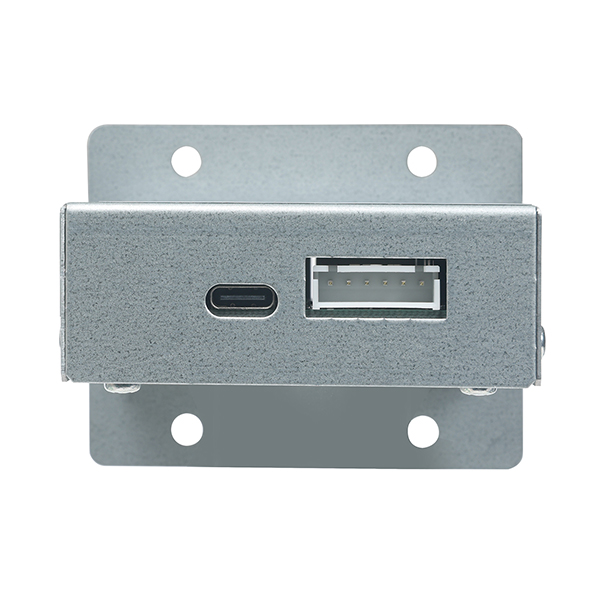

| USB Port (for service use only) |
Type-Cx1 |
| Accessories |
Screws(4) |
| Environmental conditions |
Ambient temperature: -5 ℃ to 65 ℃, humidity: 80% R.H. or less*1 |
