CO2 Incubators

MCO-233AICUVH-PE

Effective capacity
230 litres
Temperature control range & fluctuation
0 to 20, ±0.15

Features

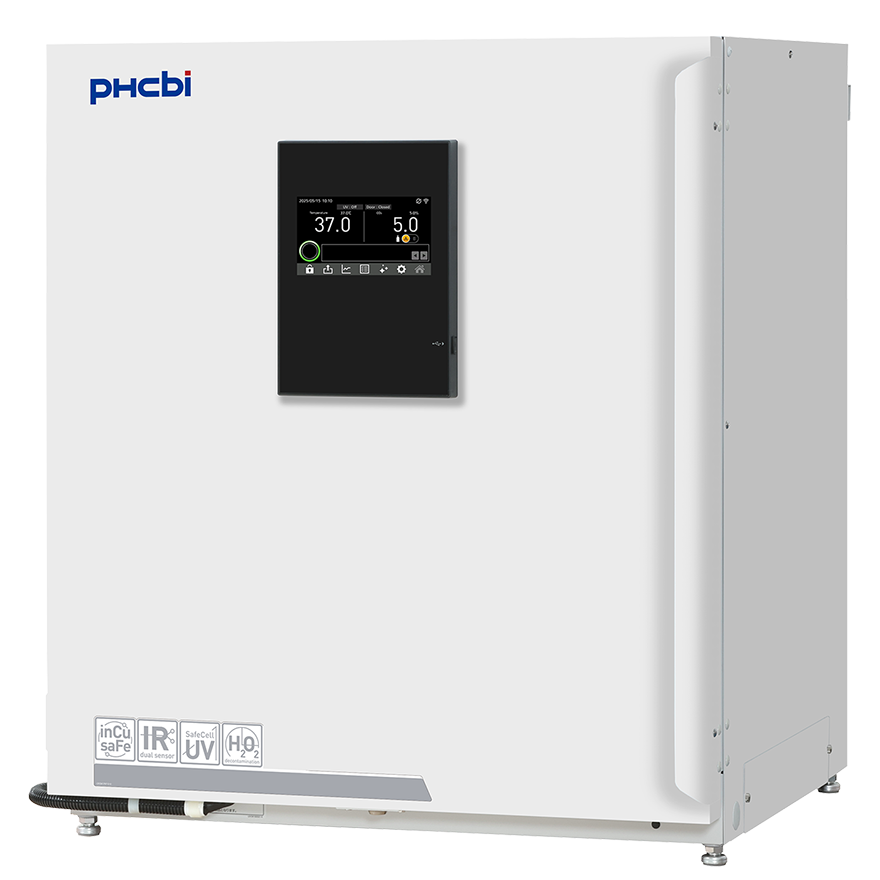

MCO-233AICUVH-PE IncuSafe CO₂ Incubator

The MCO-233AICUVH-PE IncuSafe CO₂ Incubator is designed to optimise cell culture outcomes and reproducibility with precise CO₂ concentration control, highly responsive temperature management and active contamination prevention. With a 230 litre chamber, this premium incubator is ideal for research, clinical and commercial laboratory environments.

› Request a Quote
PHCbi MCO-230AICUVH-PE CO2 Incubator
MCO-233AICUVH-PE IncuSafe CO₂ Incubator

Precise & regulated environment

The Direct Heat and Air Jacket System provides accurate, uniform and highly responsive chamber temperature control. The Dual IR CO₂ sensor delivers rapid gas recovery without overshoot, even after multiple door openings.

This stable environment supports sensitive cell cultures and ensures reliable, repeatable results.

Time-saving decontamination

The integrated high-speed decontamination system uses vaporised hydrogen peroxide and UV-LED light to safely clean the chamber in less than three hours.

It achieves a minimal 6 log reduction of major contaminants, helping laboratories maintain sterile conditions with minimal downtime.

Continuous contamination prevention

The copper-enriched stainless steel InCu-saFe interior combines the germicidal properties of copper with the durability of stainless steel.

The SafeCell UV-LED lamp continuously decontaminates circulating air and water in the humidifying pan without affecting cultured cells.

PHCbi MCO-230AICUVH-PE interior with InCu-saFe technology
PHCbi MCO-233AICUVH-PE interior with InCu-saFe technology

Key benefits

Optimised cell growth

Outstanding chamber stability for successful cell growth, consistent outcomes and excellent reproducibility.

Efficient workflows

Less incubator downtime and faster turnaround for busy laboratories and commercial applications.

Scale-up ready

Large 230 litre capacity supports growth from R&D to clinical trials and manufacturing environments.

Easy to use & data ready

A full colour LCD touchscreen allows intuitive operation, even while wearing gloves. Logged data can be transferred easily via USB for monitoring and record keeping.

The easy-clean chamber features rounded corners and integrated shelf supports for simple maintenance.

› Request a Quote



Product Photos

Specfications

Technical Specifications

MCO-233AICUVH-PE

Specification Unit MCO-233AICUVH-PE
External Dimensions (W x D x H)2) mm 770 x 730 x 905
Internal Dimensions (W x D x H) mm 643 x 523 x 700
Volume liters 230
Net Weight kg 80
Performance
Temperature Control Range & Fluctuation °C AT +5 ~ +50, ±0.1
Temperature Uniformity3) °C ±0.25
CO2 Control Range & Fluctuation % 0 ~ 20, ±0.15
Humidity Level & Fluctuation %RH 95, ±5
H2O2 Decontamination Standard
Control
Temperature Sensor Thermistor
CO2 Sensor Dual IR
Display LCD Touch Screen
Construction
Exterior Material Painted Steel (rear cover not painted)
Interior Material Stainless Steel Copper-Enriched Alloy
Insulation Material Expandable styrene-acrylonitrile beads
Heating Method Direct Heat & Air Jacket System
Outer Door qty 1
Electric door lock with password Standard
Field Reversible Door Included
Inner Door qty 1 gas tight - made of tempered glass
Shelves qty 4 x Stainless Steel Copper-enriched Alloy
Shelf Dimensions (W x D x H) mm 620 x 450 x 12
Max. Load per Shelf kg 7
Max. Shelf Capacity qty 10
Access Port qty 1
Access Port Position Rear
Access Port Diameter Ø mm 30
Alarms
Power Failure V-B-R
Out of Temperature Setting V-B-R
High Temperature V-B-R
Out of CO2 Setting V-B-R
Door open V-B
Electrical and Noise Level
Power Supply V 230
Frequency Hz 50
Noise Level4) dB 25
Options
SafeCell UV® System Standard
H2O2 Decontamination Board Standard
H2O2 Vapor Generator MCO-50HP-PW5)
H2O2 Reagent, pack of 6 bottles MCO-20H2O2-PE
CO2 Gas Pressure Regulator MCO-010R-PW
Automatic CO2 Cylinder Changeover System MCO-21GC-PW
Semi-automatic one point Gas Calibration Kit MCO-SG-PW
InCu-saFe® Shelf MCO-230ST-PW
InCu-saFe® Half Tray System MCO-35ST-PW
Double Stacking Bracket* MCO-170PS-PW
Stacking Plate* MCO-230SB-PW
Roller Base MCO-230RB-PW
Optional communication systems
Analogue interface (4-20mA)6) Standard
Mod-bus interface board MTR-MODB1-PW
OPC-UA interface board MTR-OPC1-PW
