PHCbi

MPR Natural Refrigerant Pharmaceutical Refrigerators with Freezer

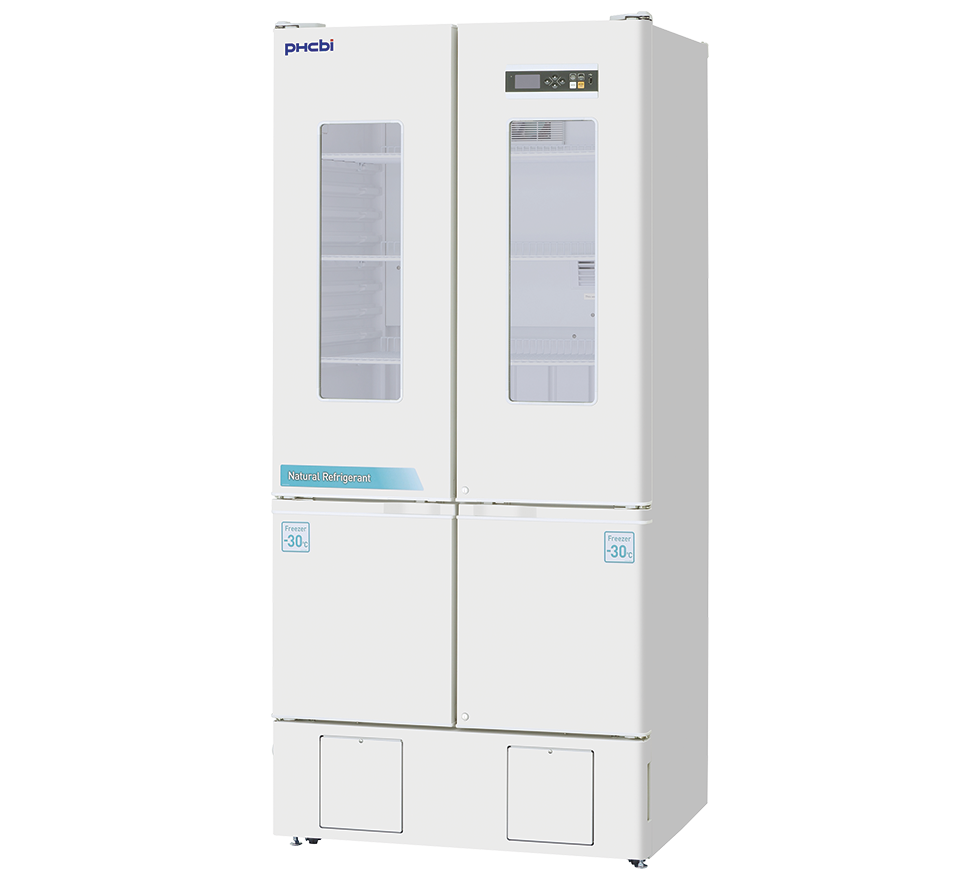

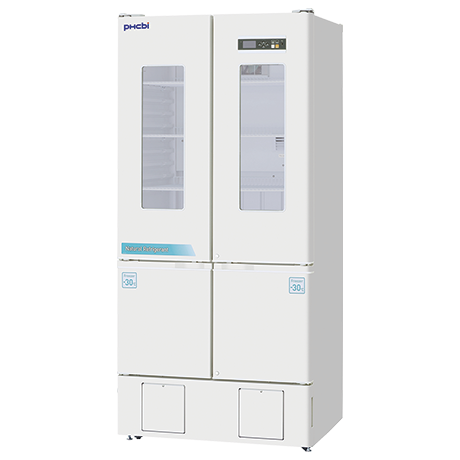

MPR-N650FH Natural Refrigerant Pharmaceutical Refrigerator with Freezer

Effective capacity
Refrigerator 466L / Freezer 189L
Temperature range
Refrigerator 2℃ to 14℃ / Freezer -30℃ to -20℃

Features

MPR Natural Refrigerant Pharmaceutical Refrigerators with Freezer

Providing a complete storage solution; refrigerator and freezer in one unit. The MPR-N650FH combines high-performance refrigeration with a -30°C freezing environment within a small footprint for flexible, reliable and convenient sample storage. Natural refrigerants minimise environmental impact for a sustainable storage solution.

Natural Refrigerants and Inverter Technology

Naturally occurring hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling and lower running costs.

Stable, Uniform Temperatures

Inverter compressor (refrigerator compartment) can run at a range of speeds depending on the cooling requirement, ensuring a stable temperature. A duct system ensures uniform temperature distribution throughout the refrigerator and fast recovery of temperature after routine door openings to minimise fluctuation.

Precise Control & Intelligent Monitoring

A microprocessor controller and accurate sensors maintain precise refrigerator and freezer temperatures that are displayed simultaneously on an OLED panel. A USB port provides simple and convenient transfer of logged data to a PC including temperature, door opening times and alarm history

Energy-efficient performance

Natural refrigerants, compressors and integrated electronics combine to achieve facility sustainability objectives by minimising any environmental impact without compromising cooling performance, ambient tolerance and recovery speeds following door openings.

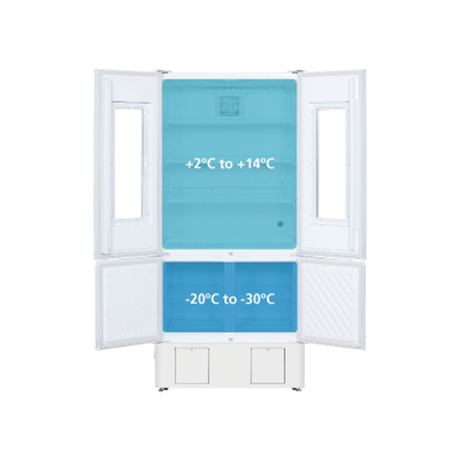

Two Temperatures, One Unit

Secure storage at both freezing and refrigerated temperatures, within a minimal footprint, is an ideal solution for installation in smaller spaced.

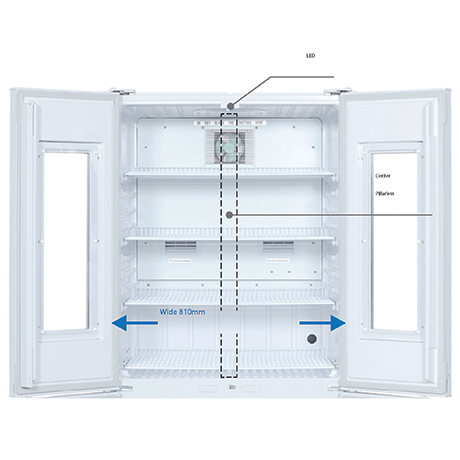

Center Pillarless Doors Designed to Manage Large Containers

Wide 810mm refrigerator doors without center obstruction allow even large containers to be easily stored and removed. Interior visibility is excellent with LED lighting.

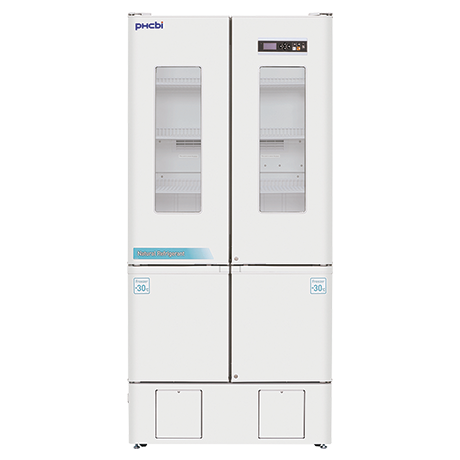

Product Photos

Specifications

External Dimensions (W x D x H) 890 x 715 x 1910 mm
Internal Dimensions (W x D x H) Refrigerator: 810 x 611 x 1004 mm | Freezer: 770 x 575.5 x 418 mm
Volume Refrigerator: 466 (FH) litres / 468 (FSH) liters | Freezer: 189 litres
Net Weight 148 kg
Temperature Setting Range
Temperature Control Range Refrigerator: +2 to +14°C | Freezer: -30 to +20°C
Controller Microprocessor with non-volatile memory
Display Digital (White graphic OLED), 1°C (increment of 0.1)
Temperature Sensor Thermistor
Cooling Method Refrigerator: Fan forced air circulation | Freezer: Direct cooling
Defrost Method Refrigerator: Cyclical defrost | Freezer: Manual
Refrigerant HC refrigerant
Insulation Material Rigid polyurethane foam (cyclopentane foam)
Exterior Material Color steel plate (PCM, Color: Healthcare White)
Interior Material Refrigerator: Vacuum molding (ABS resin) (refrigerator) | Freezer: Painted Steel
Outer Doors 4 (glass window [2(FH)/0(FSH])
Outer Door Lock Y
Shelves Refrigerator: Coated steel wires (3) | Freezer: Coated steel wires (2)
Drawers
Max. Load - Per Shelf/Drawer Refrigerator: 25 kg | Freezer: 15 kg
Max. Load - Total
Access Port R (1) / F (1)
Access Port Position Back
Access Port Diameter 30
Casters 4
Interior Light Refrigerator: LED
Power Failure R
High Temperature V-B-M-R
Low Temperature V-B-M-R
Door Open V-B-M
Power Supply Local
Noise Level 40 dB [A]

*V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm

Accessories

Options
Temperature recorders
- Continuous strip type MTR-0621LH-PE/PA MTR-4015LH-PE/PA
- Chart paper RP-06-PW RP-40-PW
- Recorder housing MPR-S30-PW 5)
- Circular type MTR-G3504C-PE / MTR-G3504A-PA
- Chart paper RP-G3504-PW
- Ink pen PG-RB-PW
- Recorder housing MPR-S7-PW 5)
Battery kit for power failure alarm MPR-48B2-PW MPR-48B2-PW
Containers inside freezer - MPR-715SC-PW
Blackout panel MPR-45BP-PW -
Additional shelf kit for freezer - MPR-650ST-PW
Optional Communication Systems
Digital interface (RS232C/RS485) MTR-480-PW 6)
Analog Interface board MTR-420MA-PW 6)
Ethernet interface (LAN) MTR-MODB1-PW 6)
Quality Management System
Certification ISO9001

Price

MPR-N650FH The price might vary in country. Please send the inquiry form for getting quotation.

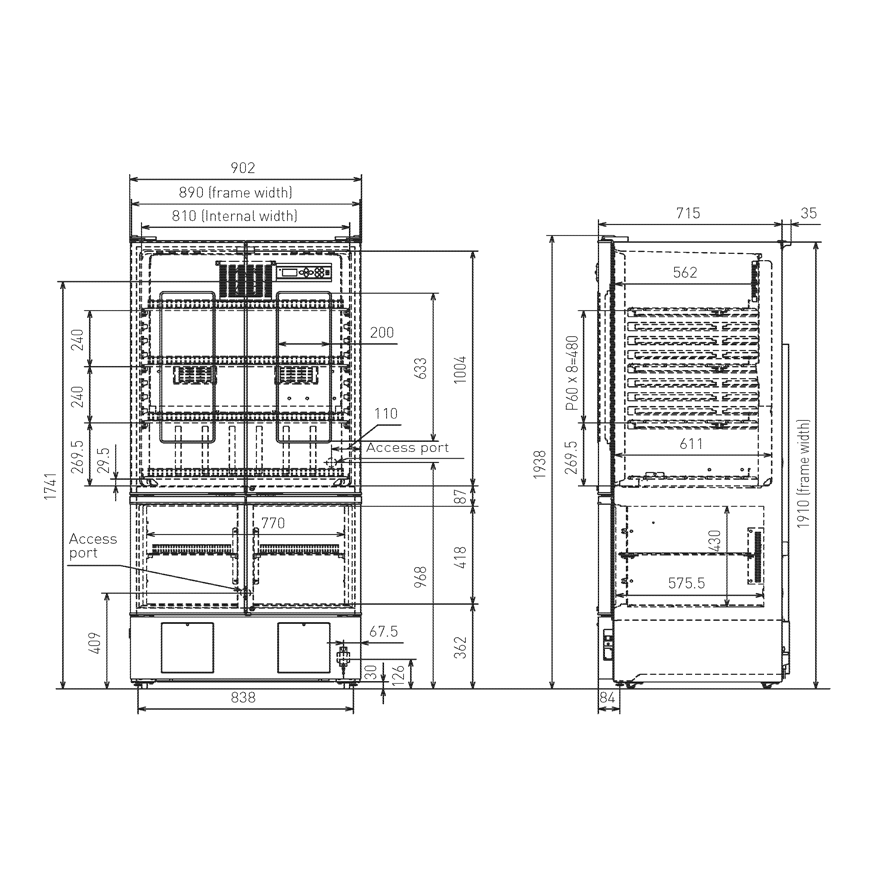

Dimensions
